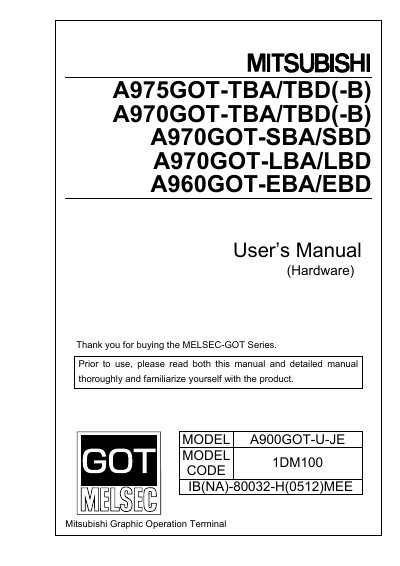

Mitsubishi A975GOT/A970GOT/A960GOT Graphic Operation Terminal User Manual

This manual provides safety precautions, installation, wiring, specifications and handling instructions for Mitsubishi MELSEC‑GOT series graphic operation…

Brand: Mitsubishi
Category: Industrial Supply
Document type: User Manual
Language: English
Pages: 30
File format: PDF
File size: 458 KB
Published: 01 October, 2026
Updated: 01 October, 2026
MD5 checksum: 38F870F4AFFC8C77BB7AEE7F64DAFE5D
PDF: Mitsubishi A975GOT/A970GOT/A960GOT Graphic Operation Terminal User Manual PDF

About this manual

The MELSEC‑GOT series Graphic Operation Terminals are HMI devices used with Mitsubishi PLC systems. The manual covers system configuration, part names, outline dimensions and detailed specifications for the various models.

Key sections include safety and mounting precautions, wiring diagrams, power‑supply connections, backlight replacement procedures, and full technical specifications such as display size, resolution, environmental ratings and mechanical dimensions.

What's inside

Overview
System Configuration
Specifications
Name of the Parts
Handling and Packing List
Installation Method
Wiring Diagram and Precautions
Power Supply Connection
Backlight Replacement
Appendices

Specifications

Display resolution	640 × 480 dots
Display size	211 × 158 mm (8.31 × 6.23 in)
Display colors	256 colors
IP rating (front section)	IP65
Weight	1.8 kg

Frequently asked questions

What is the maximum operating altitude for the GOT?

The device can operate up to a maximum altitude of 42,000 m.
