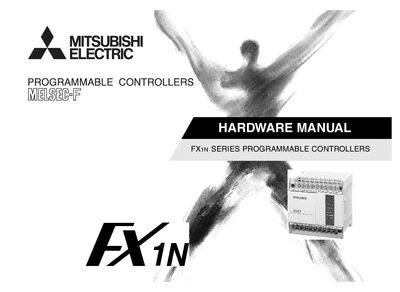

The Mitsubishi FX1N Series Hardware Manual provides safety, installation, wiring and specification details for the FX1N programmable controllers.
This hardware manual covers safety guidelines, recommended installation practices, and mounting options for the FX1N Series programmable controllers. It emphasizes the need for qualified personnel and outlines the required protective measures when working with the equipment.
The document also details power‑supply options, input and output specifications, wiring techniques, and environmental limits such as temperature, humidity and vibration resistance. Technical data and diagrams are provided to aid proper configuration and maintenance of the controllers.
| Operating Temperature | 0 to 55 °C (32 to 131 °F) |
|---|---|
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Operating Humidity | 35 to 85% RH, no condensation |
| Noise Immunity | 1000 Vp‑p, 1 µs, 30‑100 Hz |
| Dielectric Withstand Voltage | 1500 V AC > 1 min. |
| Insulation Resistance | 5 MΩ @ 500 V DC |
| Grounding Class | Class D (≤100 Ω) |
| Certification | UL/cUL, EC Directive EMC & LVD |
Installation must be performed by trained engineers or service personnel who follow local and national safety standards, and the controller should be mounted in a conductive shielded control box.
The FX1N can be powered from an AC supply, a 24 V DC supply, or a 12 V DC supply, each with specific wiring guidelines.
The controller operates between 0 °C and 55 °C and can be stored from –20 °C to 70 °C.
For DIN‑rail mounting, vibration resistance is 0.035 mm half‑amplitude at 57 Hz; for direct mounting, 0.075 mm half‑amplitude at 57 Hz.
