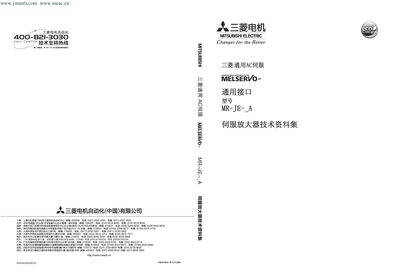

Mitsubishi Electric SH(NA0300506CN) AC Servo User Manual

The Mitsubishi Electric SH(NA0300506CN) AC servo user manual provides safety guidelines, installation, wiring, operation and specifications.

Brand: Mitsubishi Electric
Category: Industrial Robot
Document type: User Manual
Language: Chinese
Pages: 298
File format: PDF
File size: 5 MB
Published: 28 September, 2026
Updated: 28 September, 2026
MD5 checksum: 1543576A7E1324626A886AAAED1AE2A0
PDF: Mitsubishi Electric SH(NA0300506CN) AC Servo User Manual PDF

About this manual

This manual covers safety precautions, installation directions, wiring details, functional structure and technical specifications for the Mitsubishi Electric SH(NA0300506CN) AC servo. It includes environmental limits, grounding requirements and recommended handling procedures.

The document also explains signal connections, parameter settings, troubleshooting steps and maintenance advice, with appendices on harmonic suppression and analog monitor configuration. This manual is written in Chinese.

What's inside

Safety Precautions
Installation
Signal and Wiring
Function and Structure
Technical Specifications
Operation and Parameter Settings
Maintenance and Inspection
Appendix

Specifications

Output Rated Voltage	Three‑phase AC 170 V
Power Input Voltage	Three‑phase or single‑phase AC 200 V–240 V, 50/60 Hz
Operating Temperature Range	0 °C – 55 °C (no icing)

Frequently asked questions

How can I prevent electric shock when working on the servo amplifier?

Turn off the power and wait at least 15 minutes, confirm the charge indicator is off, and connect the amplifier’s protective earth (PE) terminal to the control panel’s PE.

How should the single‑phase AC power be connected?

Connect the power to terminals L1 and L3; leave L2 unconnected.

What is the recommended storage temperature for the servo unit?

Store the unit at –20 °C – 65 °C (no icing).
