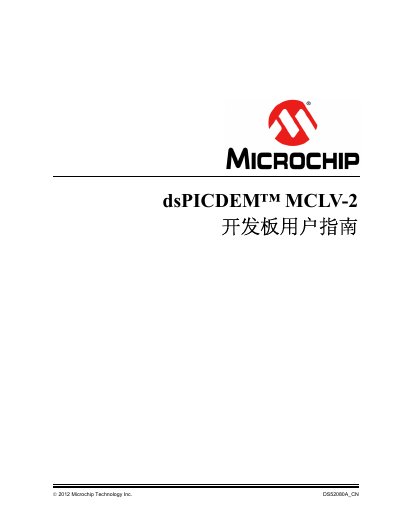

Microchip dsPICDEM MCLV-2 Development Board User Guide

About this manual

The Microchip dsPICDEM MCLV-2 development board user guide provides all the information needed to set up and operate the board. It includes an introduction to the board, a detailed hardware overview, and step‑by‑step instructions for running a brushless DC (BLDC) motor using a sensor‑less algorithm.

Appendices contain the full schematic and layout drawings as well as the board’s electrical specifications, and the document lists global sales and service locations for support. This manual is written in Chinese.

What's inside

• Preface
• Introduction
• Hardware Overview
• Using Sensor‑less Algorithm to Run BLDC Motor
• Appendix A – Schematics and Layout
• Appendix B – Electrical Specifications
• Global Sales and Service Locations

Specifications

Frequently asked questions

What is the maximum output current the board can supply?

The maximum output current is 1.5 A.

Where can I find the schematics for the dsPICDEM MCLV-2 board?

The full schematics and layout are provided in Appendix A of the guide.

How do I register the warranty for the development board?

Fill out the included Warranty Registration Card and mail it as instructed.
