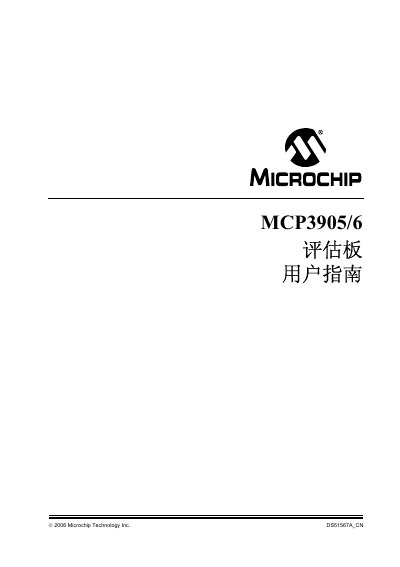

User guide for the MCP3905/6 evaluation board, covering overview, installation, operation, schematics and parts list.
The MCP3905/6 Evaluation Board User Manual provides a complete overview of the board, its purpose, and the components included in the kit. It explains how the board can be used to test energy‑meter designs that employ the MCP3905/6 energy‑metering ICs, and describes the hardware modules and connections.
The guide includes detailed installation and operation instructions, functional module descriptions, schematic and layout drawings, and a full bill‑of‑materials. It also lists Microchip’s global sales and support contacts for further assistance. This manual is written in Chinese.
| MCP3905 – Energy Metering IC | MCP3905 |
|---|---|
| Crystal Oscillator | 3.579545 MHz, 17 pF, HC49/USECS™ |
| 5 V Regulator | LM78L05ACM, 100 mA |
