Microchip PIC18F2525/2620/4525/4620 Datasheet

Data sheet for Microchip PIC18F2525/2620/4525/4620 microcontrollers covering features, specifications and package options.

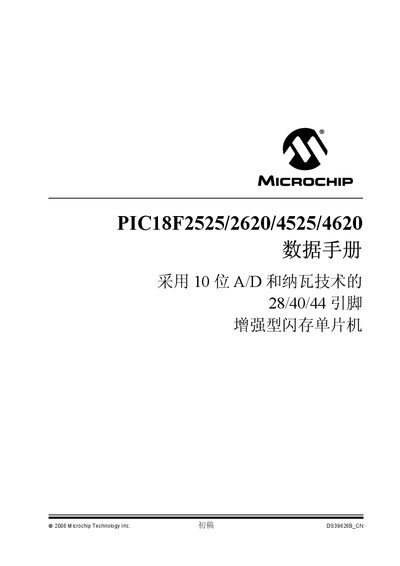

Microchip PIC18F2525/2620/4525/4620 Datasheet - cover page
Brand
MICROCHIP
Category
Other Electronics
Document type
Datasheet
Language
Chinese
Pages
390
File format
PDF
File size
6.6 MB
Updated
29 September, 2026
MD5 checksum
29497A3E72E7FE2A6D49EA6AB0E3D847

About this manual

This document provides a comprehensive description of the PIC18F2525, PIC18F2620, PIC18F4525 and PIC18F4620 enhanced flash microcontrollers. It includes details on device architecture, oscillator options, power‑management modes, memory organization, peripheral modules and electrical characteristics.

The data sheet also lists package options, pin‑out diagrams, operating voltage ranges, maximum clock frequency, I/O port counts and other key specifications needed for hardware design and firmware development. This manual is written in Chinese.

What's inside

  • Device Overview
  • Oscillator Configuration
  • Power Management Modes
  • Memory Organization
  • Peripheral Modules
  • Electrical Characteristics
  • Package Information
  • Version History

Specifications

Flash program memory (PIC18F2525)48 KB
Flash program memory (PIC18F2620)64 KB
Operating voltage (standard devices)4.2 V – 5.5 V
Operating voltage (low‑voltage devices)2.0 V – 5.5 V
Maximum clock frequency40 MHz
Package types28‑pin, 40‑pin, 44‑pin
I/O ports (40/44‑pin package)5 bidirectional ports
A/D channels (40/44‑pin package)13 channels

Frequently asked questions

What is the operating voltage range for standard PIC18F devices?

The standard devices operate from 4.2 V to 5.5 V.

How many I/O ports does the 40‑pin package provide?

The 40‑pin package provides five bidirectional I/O ports.

What is the maximum clock frequency supported by these microcontrollers?

They support a maximum clock frequency of up to 40 MHz.

Download PDF (6.6 MB)
