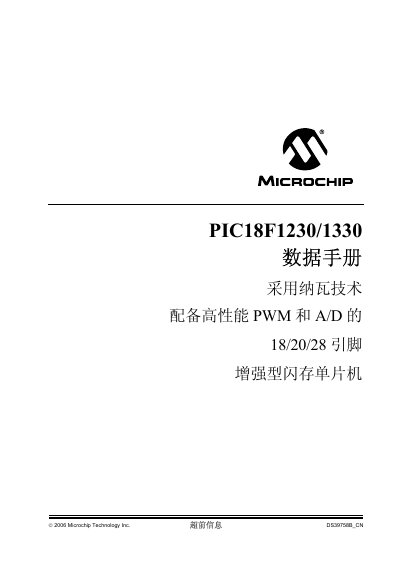

The Microchip PIC18F1230/1330 datasheet provides specifications, pin configurations, oscillator options, power‑management modes, and peripheral features of…
This datasheet describes the PIC18F1230 and PIC18F1330 8‑bit microcontrollers, highlighting their enhanced flash program memory, low‑power operation, and a rich set of peripherals such as PWM, ADC, EUSART, and hardware multipliers.
The document includes sections on device overview, oscillator configuration, power‑management modes, memory organization, peripheral modules, electrical characteristics, package information, and development support, giving designers the details needed for hardware and firmware development. This manual is written in Chinese.
| Operating Voltage Range | 2.0 V to 5.5 V |
|---|---|
| Idle Mode Current Consumption | 5.8 µA (typical) |
| PWM Output Channels | Up to 6 channels |
The devices operate from 2.0 V up to 5.5 V.
It provides up to six PWM output channels.
Idle mode current consumption can be as low as 5.8 µA typical.
