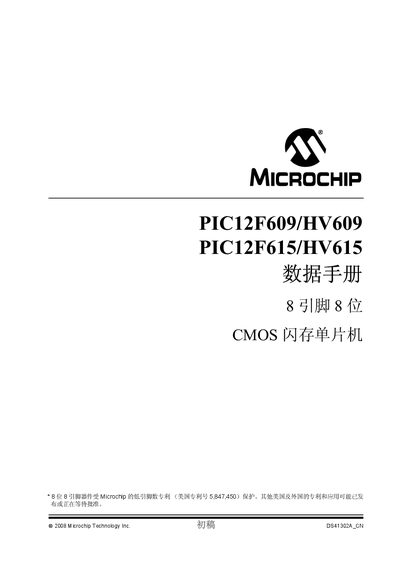

This document is a datasheet for Microchip's PIC12F609/HV609 and PIC12F615/HV615 series of 8-pin 8-bit CMOS flash microcontrollers. The products have features such as low pin count, 8-bit architecture, and flash memory storage.
The document provides detailed specifications for the PIC12F609/HV609 and PIC12F615/HV615 8‑pin CMOS flash microcontrollers, covering architecture, pin assignments, peripheral modules, and electrical characteristics.
It includes sections on device overview, memory organization, oscillator options, I/O ports, timers, comparator, ADC, enhanced capture/compare/PWM, CPU special functions, voltage regulator, instruction set summary, development support, and package information. This manual is written in Chinese.
| Flash program memory | 1024 words |
|---|---|
| Data memory (SRAM) | 64 bytes |
| Operating voltage range (PIC12F609/615) | 2.0 V – 5.5 V |
| Operating voltage range (HV variants) | 2.0 V – user‑defined max |
| Standby current (2.0 V) | 50 nA typical |
| Active current (3.2 MHz, 2.0 V) | 11 µA typical |
| Maximum flash write cycles | 100 000 cycles |
| Flash data retention | > 40 years |
The PIC12F609 and PIC12F615 operate from 2.0 V to 5.5 V.
Each device provides 1024 words of flash program memory.
Typical standby current is 50 nA at 2.0 V.
The flash memory can be written up to 100 000 times.
