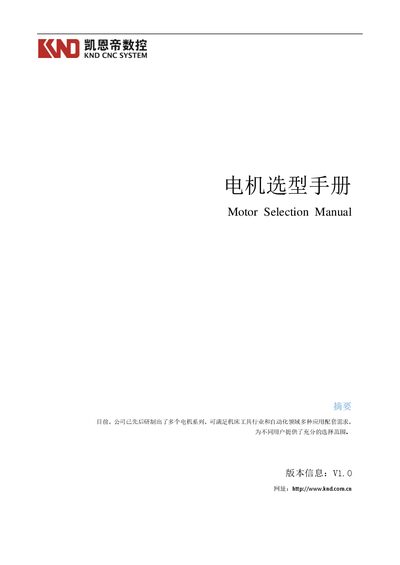

KND K Series Servo Motor Selection Manual

About this manual

The KND selection manual presents the K series servo motors, detailing their features, appearance, model designations, wiring configurations, and brake parameters for a range of models such as KA80, KA110, and related ST and spindle series. It also includes information on encoder types, power ratings and mechanical dimensions.

Technical data tables list rated power, torque, speed, IP protection, weight, pole count and drive voltage, together with mechanical characteristics and recommended drive compatibility, helping users choose the appropriate motor for CNC and automation applications. This manual is written in Chinese.

What's inside

• Motor Features
• Appearance
• Model Description
• Wiring
• Brake Parameters
• Motor Specifications and Dimensions
• Mechanical Characteristics
• Drive Recommendations
• Torque‑Speed Characteristics

Specifications

Frequently asked questions

What is the IP protection rating of the K series servo motors?

The K series servo motors have an IP67 protection rating.

What is the rated torque of the KA80 series motor?

The KA80 series motor is rated at 2.4 N·m torque.

What drive voltage is recommended for these motors?

The motors are compatible with a 220 VAC drive voltage.
