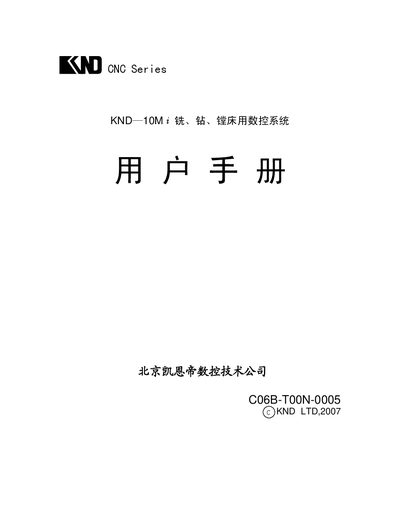

The KND-10M i CNC system user manual provides programming, operation, connection and maintenance instructions for milling, drilling and boring machines.
This manual describes the KND-10M i numerical control system developed by Beijing KND CNC Technical Co., Ltd. for CNC milling, drilling and boring machines. It covers system overview, programming functions, operation procedures, hardware connections and appendices with specifications and alarm information.
The document is organized into six parts: Overview, Programming, Operation, Connection, Appendices (specifications, parameters, diagnostics, alarms) and an Index. Detailed tables list control axes, feed rates, compensation functions, macro programming and interface pinouts, helping users set up and run the machine safely and efficiently. This manual is written in Chinese.
| Control axes | 3 axes (X, Y, Z) |
|---|---|
| Minimum setting unit | 0.001 mm |
| Maximum feed speed | 1 – 6000 mm/min |
| Program storage capacity | 48 KB, up to 63 programs |
| Display type | 640×480, 7.5‑inch color LCD or 7.4‑inch monochrome LCD |
It supports three control axes: X, Y and Z.
The minimum setting unit is 0.001 mm.
The system can feed up to 6000 mm per minute.
Up to 63 programs (48 KB of memory) can be stored.
