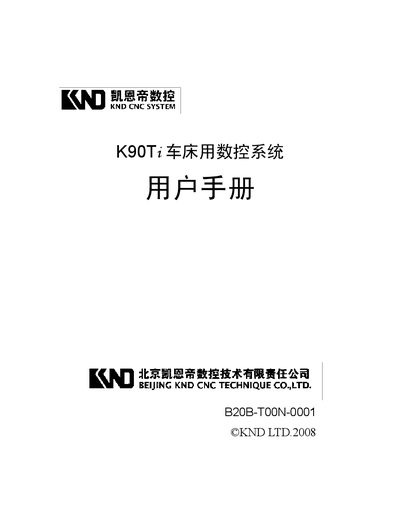

User manual for the KND K90Ti CNC system covering setup, programming, operation, connections and troubleshooting.
This manual provides a complete guide to the KND K90Ti CNC system for lathe machines. It includes an overview of the system, detailed programming instructions, operation procedures, and safety guidelines.
The document also describes hardware installation, external connections, signal tables, diagnostic information, and a full list of alarm codes to help users maintain and troubleshoot the system. This manual is written in Chinese.
| Display | 640×480 pixels, 7.4‑inch monochrome LCD |
|---|---|
| Power unit | D-50B |
| Software version | A01_080411 |
| Main board version | 0008I-0000-W01Z-0115 |
Use the program zero function described in section 6.1 of the manual.
Alarm 071 means that the search address data was not found.
Adjust the LCD brightness using the setting described in section 2.3.
