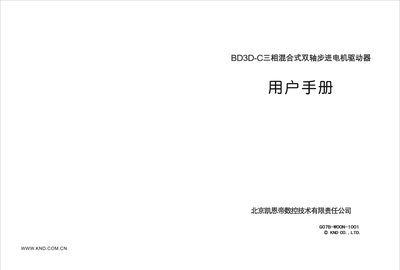

This manual details the installation, wiring, DIP switch settings, and operation of the KND BD3D-C dual-axis three-phase hybrid stepper motor driver.
The KND BD3D-C is a dual-axis three-phase hybrid stepper motor driver designed for use with KND1, 10, and 100 series CNC systems. It features AC servo control principles with full digital current loop control to ensure smooth low-speed operation without resonance or crawling. The device supports phase currents from 1.0A to 6.8A and offers multiple subdivision settings down to a minimum step angle of 0.03 degrees. This manual is written in Chinese.
| Input Power | AC220V -15% ~+10% 50/60HZ 12A (MAX) |
|---|---|
| Output Phase Current | 1.0A ~ 6.8A |
| Compatible Motor Type | Three-phase hybrid stepper motor |
| Operating Temperature | 0℃～50℃ |
| Minimum Step Angle | 0.03° |
The maximum input current is 12A.
ALM1 indicates a short circuit, ALM2 indicates overheating, ALM3 indicates overvoltage, and ALM4 indicates undervoltage.
The pulse width must be greater than or equal to 2.5µS.
