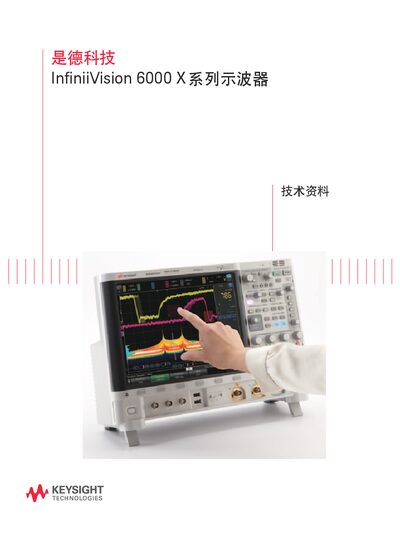

Technical data sheet for the Keysight InfiniiVision 6000 X series oscilloscope, detailing bandwidth, sampling, display and connectivity.
The InfiniiVision 6000 X series offers up to 6 GHz bandwidth and a 20 GSa/s sampling rate in a portable 6.8 kg chassis. It combines a 12.1‑inch multi‑touch capacitive display with advanced analysis functions such as InfiniiScan region‑trigger, real‑time eye‑diagram and jitter analysis, delivering over 450 k waveforms per second.
Connectivity includes three USB‑2.0 host ports, LAN, VGA, optional GPIB and a 10 MHz reference output. The instrument meets multiple safety and EMC standards and is supported by a multilingual voice‑control interface and extensive software options. This manual is written in Chinese.
| Maximum Bandwidth | 6 GHz |
|---|---|
| Maximum Sample Rate | 20 GSa/s |
| Input Noise (1 mV/div) | 210 µVrms |
| Waveform Capture Rate | > 450 k waveforms/s |
| Display Size | 12.1‑inch multi‑touch capacitive screen |
| Channels | 4 analog + 16 logic (MSO) |
| Power Consumption | 200 W |
| USB Host Ports | 3 (USB‑2.0) |
| LAN Port | 10/100/1000 Ethernet |
The oscilloscope provides up to 6 GHz of bandwidth.
It can capture more than 450 000 waveforms per second.
Yes, it features a 12.1‑inch multi‑touch capacitive touchscreen.
