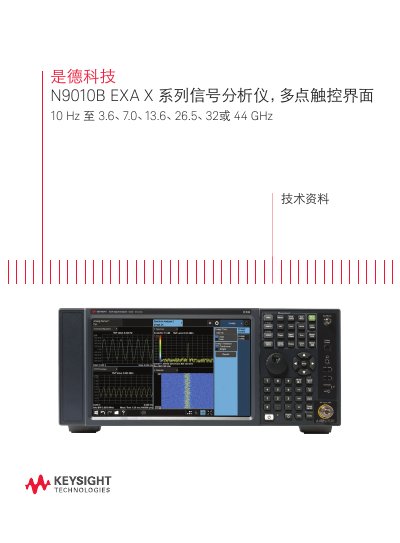

Technical specifications and performance indicators for the Keysight N9010B EXA X Series Signal Analyzer.
This document provides a detailed technical specification guide for the Keysight N9010B EXA X Series Signal Analyzer, covering frequency range, resolution bandwidth, amplitude limits, input attenuation, noise floor, and other performance parameters. It also includes information on I/Q analysis capabilities, power‑suite measurements, and recommended accessories.
The guide is organized into sections such as Definition and Conditions, Frequency and Time Technical Indicators, Amplitude Accuracy and Range, Dynamic Range, PowerSuite Measurement, General Technical Indicators, Input and Output, I/Q Analyzer, and Related Literature. Each section lists nominal values, typical values, and measurement uncertainties for the instrument under specified operating conditions.
| Frequency range | 10 Hz – 44 GHz |
|---|---|
| Amplitude range | up to +23 dBm |
| Input attenuation range | 0 dB – 60 dB |
| Typical noise floor (DANL) | -147 dBm |
The instrument covers frequencies from 10 Hz up to 44 GHz, depending on the selected option.
The analyzer provides 0 dB to 60 dB of input attenuation, selectable in 2 dB or 10 dB steps.
Typical noise floor values are around –147 dBm for frequencies between 1 Hz and 10 MHz.
