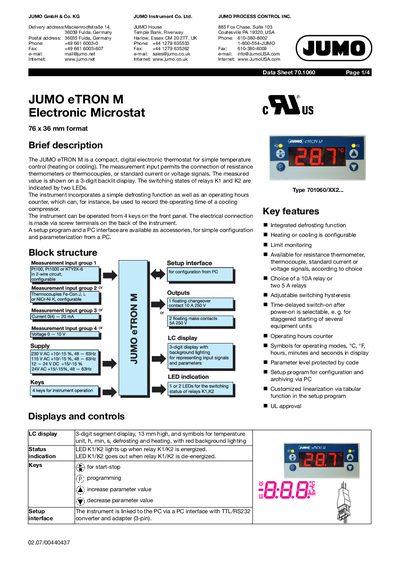

Technical data sheet for the JUMO eTRON M electronic microstat, a compact digital thermostat for temperature control with configurable heating or cooling.
The JUMO eTRON M is a compact, digital electronic microstat designed for simple temperature control applications involving either heating or cooling. It features a 3-digit backlit display and supports various measurement inputs including resistance thermometers (Pt100, Pt1000), thermocouples, and standard current or voltage signals.
Key technical capabilities include an integrated defrosting function, limit monitoring, and adjustable switching hysteresis. The device offers flexible output options with a choice of one 10A changeover relay or two 5A make contacts. Configuration can be performed via the front panel keys or through a PC interface using a setup program.
| Display type | 3-digit segment display, 13 mm high with red background lighting |
|---|---|
| Measurement input (Resistance thermometer) | Pt100 EN 60 751: -200 to +600°C; Pt1000 EN 60 751: -200 to +600°C |
| Measurement input (Thermocouple) | Fe-Con J, Fe-Con L, NiCr-Ni K: -200 to +999 °C |
| Measurement input (Current) | 0 — 20 mA or 4 — 20 mA |
| Measurement input (Voltage) | -1 to 11 V |
| Relay output option 1 | 1 changeover contact, 10A at 250V AC |
| Relay output option 2 | 2 make contacts, 5A at 250V AC |
| Supply voltage | 230V AC +10/-15%, 48 — 63Hz or 115V AC +10/-15%, 48 — 63Hz |
| Weight | approx. 160g |
It supports resistance thermometers (Pt100, Pt1000), thermocouples (Fe-Con J/L, NiCr-Ni K), and standard current or voltage signals.
The ambient conditions range from 0 to +50°C, or 0 to +40°C if mounted side-by-side.
