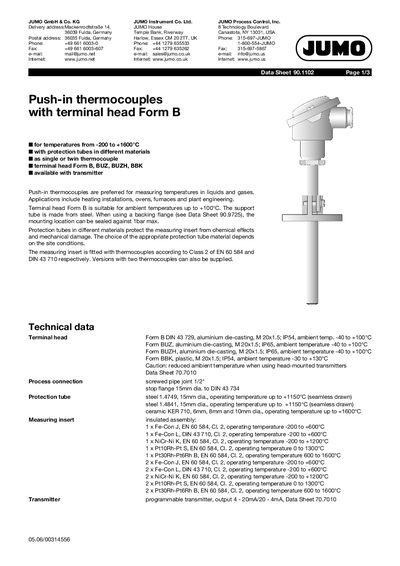

Technical data and specifications for JUMO push‑in thermocouples with terminal head Form B, covering temperature ranges, protection tubes, and order codes.
The JUMO push‑in thermocouples with terminal head Form B are designed for temperature measurement in liquids and gases. They are suitable for heating installations, ovens, furnaces and plant engineering, with ambient temperature rating up to +100 °C.
The data sheet lists terminal head variants (Form B, BUZ, BUZH, BBK), protection‑tube materials (steel and ceramic), measuring‑insert types, process‑connection options, and order‑code configurations. It also provides dimensions, nominal lengths and transmitter output options (4‑20 mA/20‑4 mA).
| Ambient temperature rating (Form B) | -40 °C to +100 °C |
|---|---|
| Steel protection tube (1.4749) max temperature | +1150 °C |
| Ceramic protection tube (KER 710) max temperature | +1600 °C |
| Transmitter output | 4‑20 mA / 20‑4 mA |
| Process connection type | screwed pipe joint 1/2" with stop flange 15 mm (DIN 43 734) |
The terminal head is rated for ambient temperatures from –40 °C to +100 °C.
It can be connected using a screwed pipe joint 1/2" with a stop flange 15 mm (DIN 43 734).
