Technical datasheet for the JUMO 902044 threaded resistance thermometer, covering specifications, certifications (GL/CCS), and configuration options.

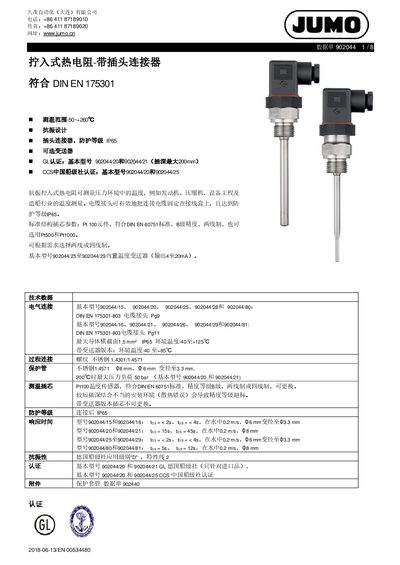

This document is a technical datasheet for the JUMO 902044 series of threaded resistance thermometers (RTDs). The product features an anti-vibration design suitable for pressure environments such as engines and compressors. It includes various configurations with plug connectors rated IP65, compatible with DIN EN 175301 standards.
The datasheet details technical data including electrical connections, process connections, protection tubes made of stainless steel (1.4571), and response times for different models. It also covers optional temperature transmitters providing a 4 to 20mA output signal. This manual is written in Chinese.
| Measuring Range | -50~+260°C |
|---|---|
| Protection Rating | IP65 |
| Sensor Element Standard | Pt 100, DIN EN 60751 Class B |
| Process Connection Material | Stainless Steel 1.4301/1.4571 |
| Protection Tube Diameter | Φ8 mm, Φ6 mm |
| Max Pressure Load (200°C) | 50 bar |
| Output Signal (Transmitter versions) | 4 to 20mA |
Protection tubes are available in Φ8 mm and Φ6 mm sizes, with a reducer to Φ3.3 mm.
The maximum pressure load is 50 bar at 200°C.
