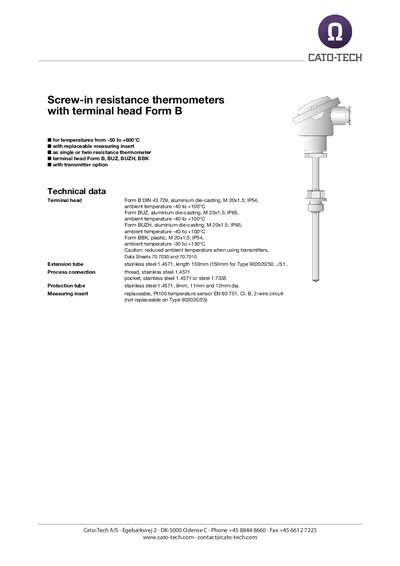

The JUMO Form B screw-in resistance thermometer data sheet provides specifications for temperatures from -50 °C to +600 °C, terminal head options and…
The Form B screw‑in resistance thermometer is designed for measuring temperatures in liquids and gases, with reliable sealing against both negative and positive pressures. It is used in HVAC, refrigeration, heating installations, ovens, furnaces and plant engineering.
Technical data include temperature range, terminal‑head constructions (Form B, BUZ, BUZH, BBK), replaceable Pt100/Pt500/Pt1000 inserts, optional transmitters and detailed mechanical dimensions.
| Temperature range | -50 °C to +600 °C |
|---|---|
| Terminal head Form B | Aluminium die‑casting, IP54, ambient -40 °C to +100 °C |
| Terminal head Form BUZ | Aluminium die‑casting, IP65, ambient -40 °C to +100 °C |
| Terminal head Form BBK | Plastic, IP54, ambient -30 °C to +130 °C |
| Measuring insert sensor | Replaceable Pt100, EN 60 751 Class B, 2‑wire circuit |
| Response time (t0.9) | ≈ 50 s (water 0.2 m/s, 9 mm dia.) |
It measures from –50 °C up to +600 °C.
Yes, a transmitter can be optionally integrated into the terminal head.
