DDMF5-8DIO Profibus-dp user manual, it is mainly used for FCS PLC DCS PCS computer etc. control data acquisition system switch quantity input expansion, using Profibus dedicated chip, support all Profibus-dp field bus system.
The DDMF5-8DIO is an 8‑channel digital I/O module for Profibus‑DP networks, designed for use in PLC, DCS and PCS control systems. It supports both NPN and PNP transistor outputs and operates from a 24 V DC supply.

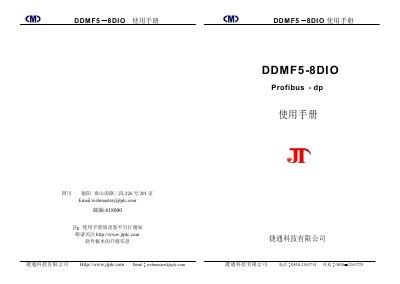

The manual provides detailed wiring diagrams, power requirements, module dimensions, communication settings, and step‑by‑step instructions for configuring the module in Siemens STEP 7 and other Profibus‑DP environments. This manual is written in Chinese.
| Power Consumption | 8 W |
|---|---|
| Communication Speed | 9.6 Kbps – 12 Mbps |
| Module Dimensions (L×W×H) | 128 mm × 71 mm × 26 mm |
| Output Types | NPN and PNP transistor outputs |
Both NPN and PNP transistor outputs are supported.
The module supports speeds from 9.6 Kbps up to 12 Mbps.
