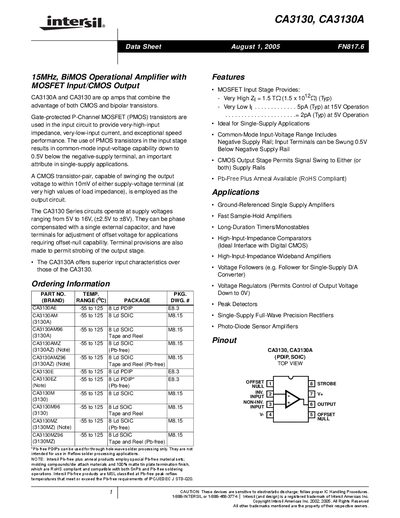

The CA3130 series combines CMOS and bipolar transistor advantages, offering very high input impedance, low input current (≈5 pA), and rail‑to‑rail output swing. The devices operate from 5 V to 16 V and can be used in single‑supply configurations, making them suitable for voltage‑follower, comparator, and DAC applications.
Key features include MOSFET input stage, offset‑null capability, strobing options, and RoHS‑compliant Pb‑free packaging. Detailed electrical specifications, absolute maximum ratings, and application circuits are provided for designers.
| Supply Voltage Range | 5 V to 16 V |
|---|---|
| Common‑Mode Rejection Ratio (CMRR) | 90 dB (typical) |
The device operates from 5 V up to 16 V supply voltage.
Yes, the CA3130 is designed for single‑supply use and is ideal for such applications.
