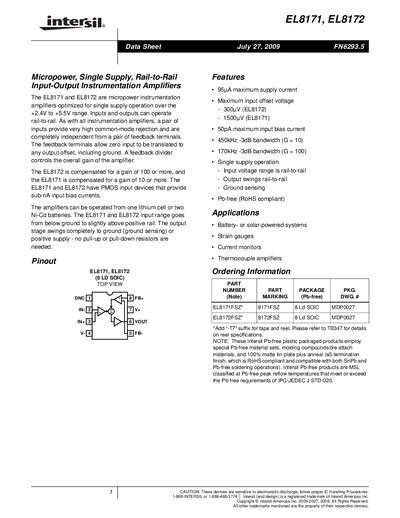

EL8171, EL8172 Micropower, Single Supply, Rail-to-Rail Input-Output Instrumentation Amplifiers
The EL8171 and EL8172 are micropower instrumentation amplifiers optimized for single‑supply operation from +2.4 V to +5.5 V. They feature rail‑to‑rail inputs and outputs, PMOS input devices with sub‑nA bias currents, and a feedback divider that sets gain.
The devices are supplied in an 8‑lead SOIC package, are RoHS‑compliant, and include specifications for supply current, offset voltage, bias current, bandwidth, and various performance curves across temperature and gain settings.
| Maximum supply current | 95 µA |
|---|---|
| Input offset voltage (EL8172) | 300 µV |
| Input offset voltage (EL8171) | 1500 µV |
| Maximum input bias current | 50 pA |
| Bandwidth at gain = 10 | 450 kHz (-3 dB) |
| Supply voltage range | +2.4 V to +5.5 V |
The maximum supply current is 95 µA.
The EL8172 has an input offset voltage of 300 µV.
At a gain of 10 the -3 dB bandwidth is 450 kHz.
They operate from +2.4 V up to +5.5 V on a single supply.
