Industrial Sewing Machine Controller User Guide

This user guide provides installation, operation, and parameter adjustment instructions for industrial sewing machine controllers including models M-6SD2…

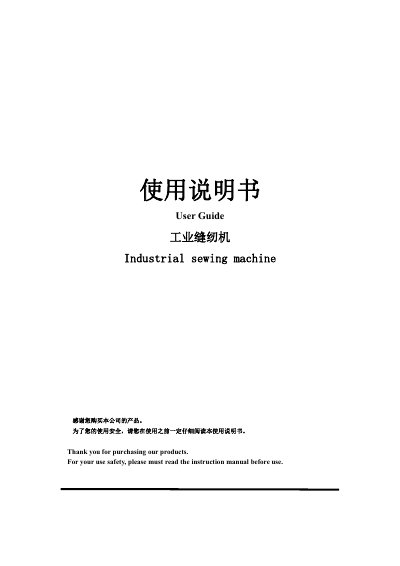

Industrial Sewing Machine Controller User Guide - cover page
Document type
User Manual
Language
Chinese
Pages
13
File format
PDF
File size
389 KB
Published
16 October, 2026
Updated
16 October, 2026
MD5 checksum
B0538C03B21D837721650A398440AAF6
PDF
Industrial Sewing Machine Controller User Guide PDF

About this manual

This document is a user manual for an electronic controller used with industrial sewing machines. It covers safety precautions, technical specifications such as voltage and power ratings, and port definitions for connecting motors and pedals.

The guide details how to operate the control panel in both working and parameter modes. It explains how to adjust settings like motor speed, needle position, and rotation direction, as well as how to reset the device to factory defaults. This manual is written in Chinese.

What's inside

  • Preface
  • Safety Instructions
  • Control Box Technical Index
  • Port Definition
  • Operation Panel Description
  • Parameter Adjusting
  • Error Code List

Specifications

Working VoltageAC220V±20% 50/60HZ
Rated Power550W
Motor Torque≤3N·M

Frequently asked questions

What does error code Er01 indicate?

Er01 indicates a needle position error, which may be caused by a broken motor hall sensor or loose signal lines.

What is the rated power of the controller?

The rated power is 550W.

What is the working voltage for the controller?

The working voltage is AC220V±20% 50/60HZ.

What is the maximum speed setting for parameter P-01?

The maximum speed setting is 6500.

Download PDF (389 KB)
