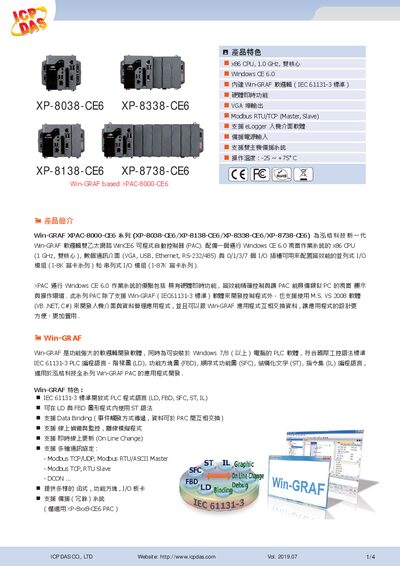

The ICP DAS XPAC-8000-CE6 series specification sheet details hardware features, communication protocols, dimensions, and power information.
The XPAC-8000-CE6 series from ICP DAS is a Win‑GRAF based dual‑Ethernet PAC running Windows CE 6.0. It offers a 1.0 GHz dual‑core x86 CPU, up to 2 GB DDR3 MRAM, and a range of I/O expansion slots.
The devices support multiple communication standards such as Modbus TCP/UDP, Modbus RTU/ASCII, DCON, and optional HART. They provide two Ethernet ports, several serial ports, VGA output, and redundant power input for high‑availability applications. This manual is written in Chinese.
| CPU | x86, 1.0 GHz, dual‑core |
|---|---|
| Operating System | Windows CE 6.0 |
| System Memory | 2 GB DDR3 MRAM |
| Flash Memory | 32 GB |
| Power Input | +10 ~ +30 V DC |
| Operating Temperature | -25 °C ~ +75 °C |
| Dimensions (XP‑8038‑CE6) | 137 mm × 132 mm × 125 mm |
| Ethernet Ports | 2 (RJ‑45, 10/100/1000 Base‑T) |
It runs Windows CE 6.0.
The system includes two RJ‑45 Ethernet ports.
Yes, it has a redundant power input with a 1 A @ 24 VDC relay for power‑failure warning.
