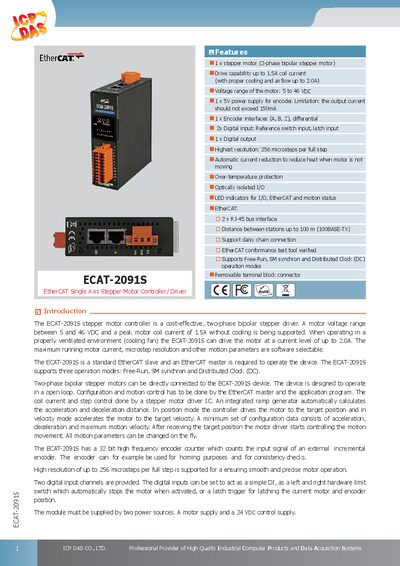

The ICP DAS ECAT-2091S is a cost‑effective two‑phase bipolar stepper motor controller/driver with EtherCAT interface, supporting up to 2 A coil current and…
The ECAT-2091S is a compact EtherCAT‑slave stepper motor controller designed for industrial applications. It drives a two‑phase bipolar stepper motor with a voltage range of 5 V to 46 V DC and a peak coil current of 1.5 A (up to 2.0 A with proper cooling). The module offers high‑resolution microstepping up to 256 steps per full step, an integrated ramp generator, and optional encoder feedback for precise positioning.
Technical data include a 5 V encoder power supply (max 150 mA output), two digital inputs, one open‑collector digital output, and a 24 V DC control supply. The device measures 110 mm × 90 mm × 33 mm, operates from –25 °C to +40 °C, and communicates via two RJ‑45 EtherCAT ports supporting daisy‑chain connections up to 100 m.
| Motor voltage range | 5 to 46 V DC |
|---|---|
| Peak coil current (normal) | 1.5 A |
| Microstep resolution | up to 256 microsteps per full step |
| Digital inputs | 2 |
| Digital output | 1 open‑collector |
| Encoder power supply | 5 V (max 150 mA output) |
| Operating temperature | -25 °C to +40 °C |
It supports motor voltages from 5 V to 46 V DC.
The controller can be set for up to 256 microsteps per full step.
The ECAT-2091S provides two digital input channels.
