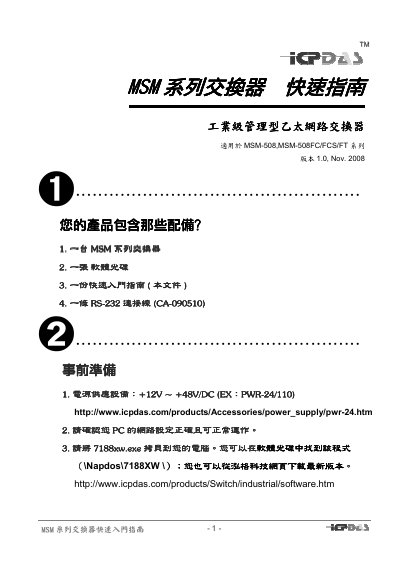

This document is a quick start guide for the MSM series switches, which introduces the equipment and preparations, as well as the steps to connect the power supply and computer host.
This guide walks you through the preparation steps required before installing the MSM series switch, including checking the supplied accessories and ensuring a suitable power source. It details how to connect the power supply (12 V to 48 V DC) and link the switch to a PC via the RS‑232 serial port.
The document then explains the quick configuration process: running the 7188xw.exe utility, setting IP address, subnet mask, and gateway, and accessing the web management interface with the default credentials (Admin/Admin). It also provides reference links for firmware updates and additional support resources. This manual is written in Chinese.
| Default username | Admin |
|---|---|
| Default password | Admin |
| Document version | 1.0 (Nov. 2008) |
