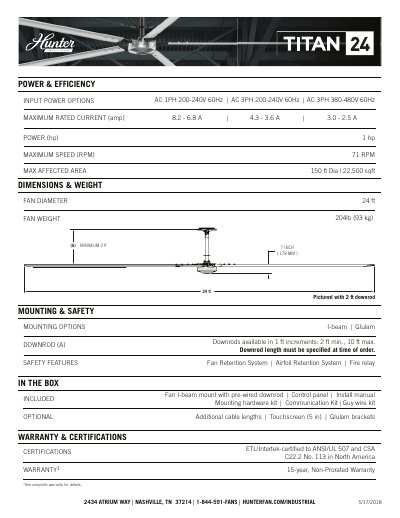

A product specification sheet for the Hunter 24 ft Industrial Fan, detailing power options, dimensions, safety features, and warranty information.
This document provides technical specifications for the Hunter 24 ft Industrial Fan. Key details include a maximum affected area of 150 ft diameter and a weight of 204 lb (93 kg). The fan is available with various power options including AC 1PH and AC 3PH configurations at 200-240V or 380-480V, 60Hz.
| Fan Weight | 204 lb (93 kg) |
|---|---|
| Maximum Affected Area | 150 ft Dia |
| Input Power Options | AC 1PH 200-240V 60Hz | AC 3PH 200-240V 60Hz | AC 3PH 380-480V 60Hz |
| Maximum Speed | 71 RPM |
| Warranty | 15-year, Non-Prorated |
The maximum affected area is a diameter of 150 ft covering 22,500 sqft.
The fan operates on AC 1PH 200-240V 60Hz or AC 3PH 200-240V 60Hz.
Downrods are available in increments starting at a minimum of 2 ft.
