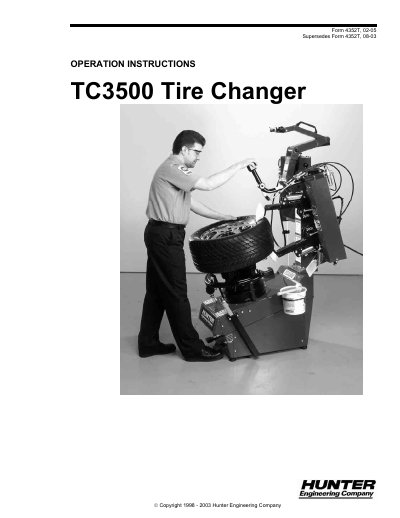

This operation manual provides detailed operating instructions for the TC3500 tire changer.
This manual provides operation instructions and information required to maintain the TC3500 tire changer. It assumes the operator is already familiar with the basics of tire changing and covers equipment components, safety precautions, and specific procedures for various wheel types. The document emphasizes that the machine is to be operated only by a qualified trained technician and that the owner is responsible for arranging technical training.
The guide details basic procedures such as bead loosening, placing the wheel on the machine, demounting, mounting, and tire inflation. It also includes advanced procedures for specific tire types like run-flat tires, stiff low profile tires, and BMW Z3 Motorsport wheels. A maintenance and calibration section outlines the schedule for upkeep and adjustment of components like the column and bead rollers.
| Maximum Tire Diameter | 40 inches |
|---|---|
| Maximum Tire Width | 19 inches |
| Supply Line Pressure Limit | 220 PSI |
| Operating Pressure Limit | 145 PSI |
| Bead Seating Pressure Limit | 40 PSI |
The TC3500 is to be operated only by a qualified trained technician.
The machine is intended for tires with a maximum dimension of 40 inches in diameter and 19 inches in width.
Operators must wear OSHA approved eye protection and non-slip safety footwear.
