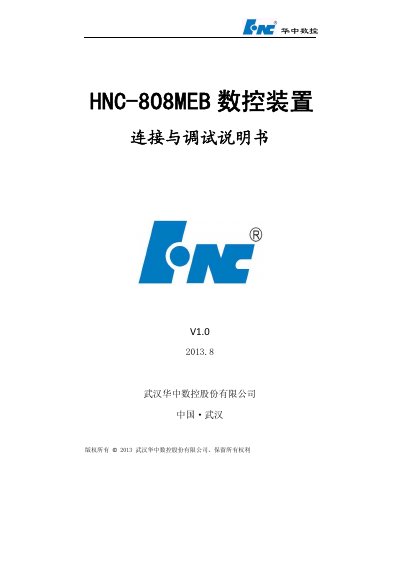

HNC HNC-808MEB CNC Controller Connection and Debugging Manual

About this manual

This manual introduces the HNC-808MEB CNC controller, detailing its functional features, electrical design knowledge, and usage precautions. It provides step-by-step instructions for installation, debugging, and typical design methods, along with methods for eliminating common faults caused by improper operation.

The document covers safety notices, unpacking checks, and installation requirements. It provides comprehensive connection guides for power, external computers, hand units, main spindles, and feed drive units. Additionally, it includes typical design examples for CNC milling machines and a fault diagnosis section with alarm information. This manual is written in Chinese.

What's inside

• Safety Notices
• Connection
• Typical Design Examples
• Fault Diagnosis
• Interface Definitions
• Power Supply
• Hand Unit Connection
• Main Spindle Connection
• Feed Drive Connection
• Emergency Stop Design

Specifications

Frequently asked questions

What is the maximum number of linked axes for the HNC-808MEB?

The maximum number of linked axes is 4.

What type of signal does the hand unit require?

The hand unit requires DC5V power supply, TTL level, and A, B phase output.
