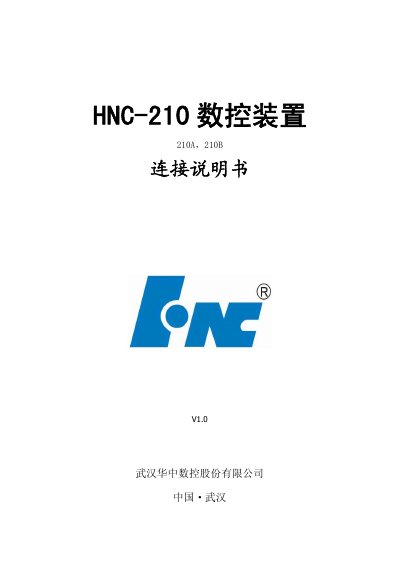

HNC HNC-210A/B CNC Controller Connection Manual

This manual covers the connection, wiring, and parameter settings for the HNC-210A and HNC-210B CNC controllers manufactured by Wuhan HNC.

Brand: HNC
Category: Industrial Robot
Document type: User Manual
Language: Chinese
Pages: 132
File format: PDF
File size: 4.9 MB
Updated: 17 October, 2026
MD5 checksum: B5658C09A8976247CCF0432896718785
PDF: HNC HNC-210A/B CNC Controller Connection Manual PDF

About this manual

This document serves as a connection guide for the HNC-210 series CNC controllers, specifically covering the HNC-210A and HNC-210B models. It details the product's functional features, electrical design knowledge, and usage precautions. The guide explains how to connect the controller to various components including hand units, I/O terminal boards, remote I/O boards, spindle drives, and feed drive units. This manual is written in Chinese.

What's inside

Safety Precautions
Connection Overview
Power Supply and Grounding
I/O Terminal Connections
Spindle Connection
Feed Drive Connection
Parameter Settings
Electromagnetic Compatibility

Specifications

Max simultaneous axes	8 axes (HNC-210A is 4 axes)
Screen size (HNC-210C)	15 inch
Input interfaces	40 channels (expandable to 60)
Output interfaces	32 channels (expandable to 48)
Program storage capacity	2GB
Flash RAM	8MB
RAM buffer	256MB
Isolation voltage	2500VRMS (one minute)
Power voltage	24V
Max output current	100mA

Frequently asked questions

What is the maximum number of simultaneous axes for the HNC-210A?

The HNC-210A supports a maximum of 4 simultaneous axes.

What is the required grounding resistance for the controller?

The grounding resistance must be less than 4 ohms.

Can the HNC-210B support 8 axes?

Yes, the HNC-210B is an integrated structure that supports up to 8 axes.
