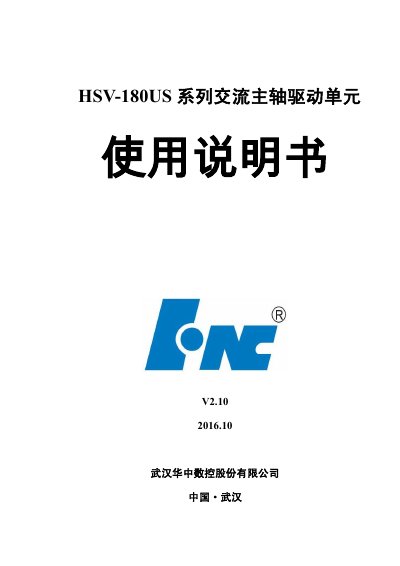

This manual covers installation, wiring, operation, parameter settings, and troubleshooting for the HNC HSV-180US and HSV-180U1S series AC spindle drive units.
The document is a user manual for the HNC HSV-180US and HSV-180U1S series of AC spindle drive units. It provides comprehensive instructions on safety warnings, installation environments, wiring configurations for various models (including 035 to 450 kW ratings), and connection methods for peripheral devices like encoders and communication interfaces.
The guide details operational procedures including power-up sequences, jogging modes, internal/external speed control, position control, and spindle orientation. It also includes extensive sections on parameter settings for motion and control parameters, as well as a fault diagnosis chapter explaining protection functions and alarm clearing methods. This manual is written in Chinese.
| Operating Temperature | Below 45°C (with cooling fan) |
|---|---|
| Protection Functions | Over thirty different protection functions |
Alarms can be cleared by cutting power and re-energizing, using the internal reset mode on the panel, or via an external alarm reset signal.
The drive unit and motor must be powered off for at least 5 minutes before handling to prevent electric shock or burns.
