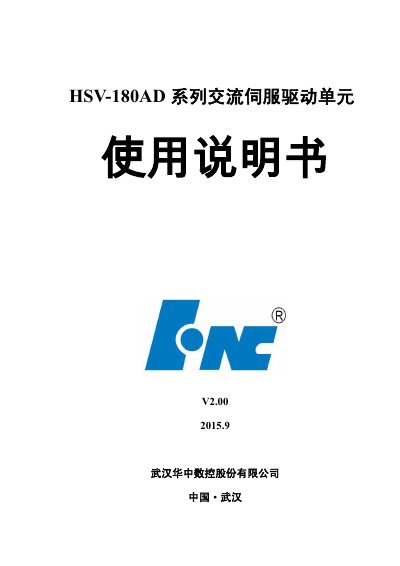

This manual covers installation, wiring, operation, parameter settings, and troubleshooting for the HNC HSV-180AD series AC servo drive units.
The document is a user manual for the HNC HSV-180AD series of AC servo drive units. It provides comprehensive instructions on safety warnings, product overview, ordering information, installation procedures, wiring connections, operation modes, parameter settings, and fault diagnosis.
The guide details specifications for various models (e.g., HSV-180AD-035 to -450) compatible with GK6 and HB series motors. It includes specific instructions on environmental conditions, mounting methods, terminal configurations, and standard wiring diagrams for different control modes such as pulse quantity and analog interfaces. This manual is written in Chinese.
| Rated Output Current (HSV-180AD-035) | 12.5 A |
|---|---|
| Suitable Motor Power (HSV-180AD-035) | 3.7KW |
| Short-time Maximum Current (HSV-180AD-035) | 22 A |
No, do not connect capacitors or LC/LR noise filters to the U, V, W output loop as it will damage the drive unit.
The recommended brake resistor power is 800W.
