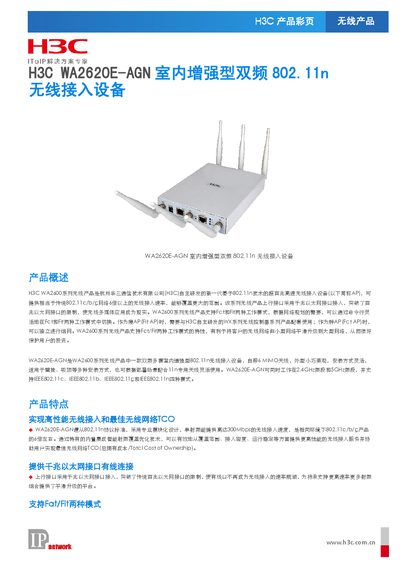

The H3C WA2620E-AGN manual provides product overview, features, hardware specs, and management instructions for the indoor dual‑band 802.11n access device.
The H3C WA2620E-AGN is an indoor enhanced dual‑band 802.11n wireless access device that supports both Fat and Fit operation modes, gigabit Ethernet, IPv4/IPv6 dual‑stack, intelligent load balancing, and Chinese SSID. It can be deployed in wall‑mount or ceiling‑mount installations and works with H3C WX series controllers for centralized management.
The manual details hardware dimensions, power requirements, antenna configuration, supported wireless standards (including WAPI), and network management interfaces such as TR‑069, SNMP, and Telnet. It also describes local packet forwarding, security features, and QoS capabilities. This manual is written in Chinese.
| Weight | 1.3 kg |
|---|---|
| Dimensions (without antenna) | 210 mm × 150 mm × 35 mm |
| Ethernet Port | 10/100/1000 M Ethernet, 1 port |
| PoE+ Support | 802.3at, 48 V DC |
| Antenna Interfaces | 6 external RP‑SMA connectors (built‑in antennas) |
| Frequency Bands | 5.725‑5.850 GHz (5 GHz) and 2.4‑2.483 GHz (2.4 GHz) in China |
| Maximum Transmit Power | 20 dBm (adjustable) |
| Operating Temperature | -10 °C to 65 °C |
| Power Consumption | < 16 W |
| MTBF | > 250 000 h |
The device switches modes via a simple command‑line interface, and the change can be applied in batch through the management system.
Yes, it implements a dual‑stack IPv4/IPv6 protocol stack.
Yes, it can convert wireless packets to wired format locally, bypassing the controller for faster forwarding.
Yes, the device allows SSIDs up to 32 Chinese characters, or mixed Chinese/English names.
