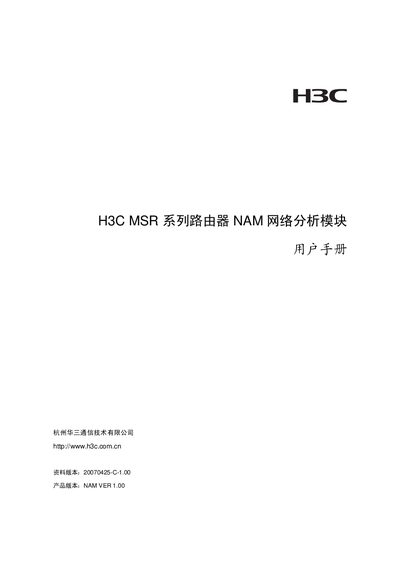

This document is the user manual for H3C MSR series router NAM network analysis module, which introduces the hardware and software basics, features, installation and configuration, and common troubleshooting solutions of the product.
The H3C NAM (Network Analysis Module) is a hardware‑software platform for MSR series routers that captures and analyzes all traffic passing through the router. It provides a management Ethernet port, two USB ports, and up to 80 GB of storage for detailed flow monitoring and security analysis.
The manual includes product overview, step‑by‑step installation, configuration instructions, a FAQ section, and an appendix detailing all software functions and plugin settings. This manual is written in Chinese.
| Management Ethernet port | 1 GE |
|---|---|
| USB ports | 2 |
| Hard‑disk storage | 80 GB |
| Supported router series | MIM‑NAM on MSR 30 series, FIC‑NAM on MSR 50 series |
Open the Web Users menu and click [Add user] to create a new user.
Select the Reset stats option to clear all in‑memory statistics, including host and TCP information.
