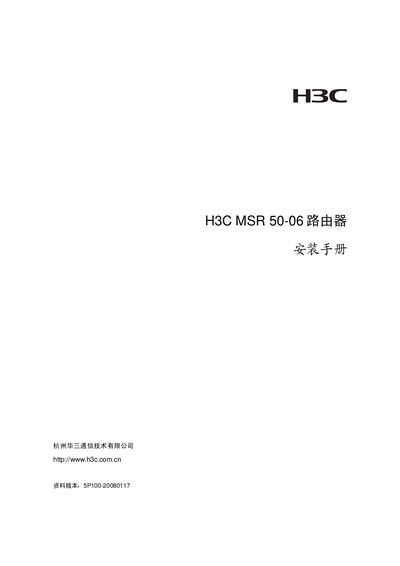

H3C MSR 50-06 Router Installation Guide

About this manual

This manual provides step‑by‑step instructions for installing the H3C MSR 50-06 router, including mechanical mounting, power connection, and interface cabling. It also describes the required installation environment, safety precautions, and the tools needed.

The guide details router startup, basic configuration via console, software upgrade procedures (XModem, TFTP, FTP), and common fault handling such as terminal display issues and TFTP upgrade failures. This manual is written in Chinese.

What's inside

• Product Introduction
• Pre‑Installation Preparation
• Router Installation
• Router Startup and Configuration
• Software Maintenance
• Installation Fault Handling
• Environmental Protection

Specifications

Frequently asked questions

How can I fix garbled characters on the terminal after powering on the router?

Set the terminal parameters to baud rate 9600, data bits 8, no parity, stop bits 1, no flow control, and VT100 emulation.

Why does a TFTP upgrade fail and how can I resolve it?

The failure is usually caused by the TFTP server not running or incorrect Ethernet settings; ensure the TFTP server is started, IP addresses are correct, and the network cable is properly connected.

What should I do if the router reports an invalid software version during upgrade?

Verify that the correct software version file is placed in the TFTP server’s directory and retry the upgrade.
