Fuji Electric TWIN Series MCCBs and ELCBs Product Catalog

About this manual

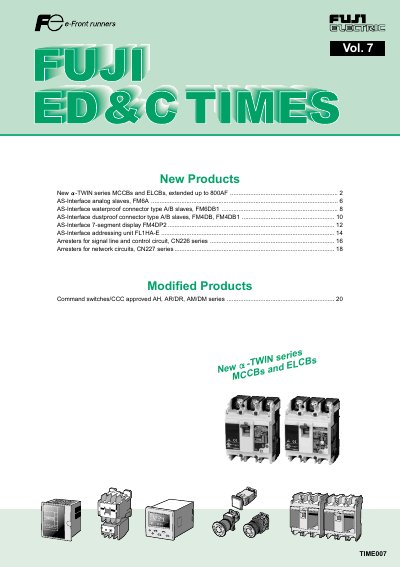

The FUJI ED & C TIMES Vol. 7 catalog presents the new TWIN series MCCBs and ELCBs, extending current ratings up to 800 A and offering interrupting capacities up to 85 kA. All devices conform to IEC and CE marking requirements.

In addition to the TWIN series, the catalog lists new AS‑Interface analog, waterproof and dust‑proof slaves (FM6A, FM6DB1, FM4DB, FM4DB1) and updated arresters for signal lines, control circuits, and network circuits, together with modified command switches and other accessories.

What's inside

• New Products
• TWIN series MCCBs and ELCBs
• AS‑Interface analog slaves
• AS‑Interface waterproof connector slaves
• AS‑Interface dust‑proof connector slaves
• Earth leakage circuit breakers
• Arresters for signal line and control circuit
• Arresters for network circuits
• Modified Products

Specifications

Frequently asked questions

What is the maximum current rating of the new TWIN series MCCBs?

The TWIN series MCCBs are available with a current rating up to 800 A.

What addressing method is used for the FM6A analog slave?

The FM6A can be addressed using the FL1HA‑E addressing unit via an addressing cable.

What safety standards do the new TWIN series breakers meet?

The new TWIN series breakers conform to IEC and CE marking requirements.
