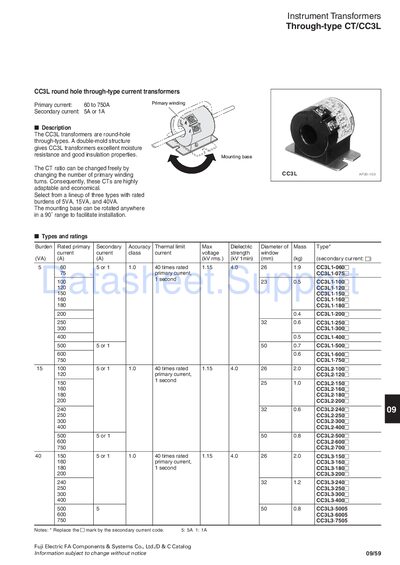

Technical specifications and ordering information for Fuji Electric CC3L through-type current transformers.
The CC3L series are round‑hole through‑type current transformers with a double‑mold structure that provides excellent moisture resistance and good insulation. They offer selectable secondary currents of 5 A or 1 A, accuracy class 1.0, and can be adapted by changing the number of primary winding turns.
Three types are available with rated burdens of 5 VA, 15 VA, and 40 VA. The mounting base rotates up to 90° for flexible installation, and the transformers support primary currents from 60 A to 750 A.
| Primary current range | 60 A to 750 A |
|---|---|
| Secondary current options | 5 A or 1 A |
| Accuracy class | 1.0 |
| Thermal limit current | 40 × rated primary current for 1 s |
| Maximum voltage rating | 1.15 kV rms |
| Burden (VA) | 5 VA, 15 VA, 40 VA |
| Diameter of window | 26 mm, 23 mm, 32 mm |
| Dielectric strength | 4.0 kV (1 min) |
The CC3L series can handle primary currents from 60 A up to 750 A.
The transformers are offered with either a 5 A or a 1 A secondary current.
All CC3L models have an accuracy class of 1.0.
The maximum voltage rating is 1.15 kV rms.
