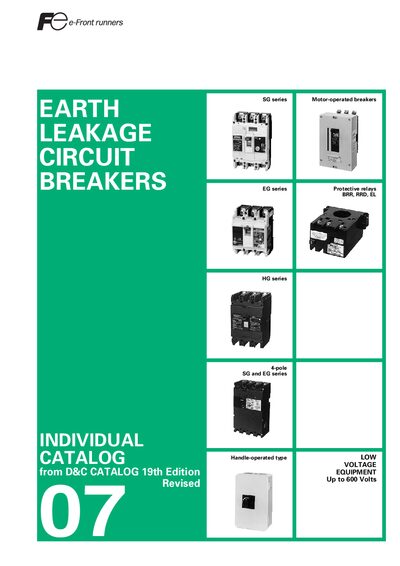

The Fuji Electric catalog details SG, EG, and HG series Earth Leakage Circuit Breakers, covering specifications, dimensions, features, and accessories.
This catalog presents Fuji Electric's Earth Leakage Circuit Breakers (ELCBs) in the SG, EG, and HG series. It includes general information, design features, breaking capacities, and a quick reference guide for line‑ and motor‑protection applications.
The document lists ratings from 30 AF to 800 AF, standard tripping values, voltage ranges, mounting options, terminal connections, and a wide range of internal and external accessories such as alarm switches, shunt‑trip devices, and padlocking kits.
| Standard tripping values | 15 mA, 30 mA, 100 mA, 200 mA, 500 mA |
|---|---|
| Panel cutout height (30‑225 AF models) | 52 mm |
| Panel cutout height (400‑800 AF models) | 92 mm |
| Breaking capacity of SG104H / SG204H | 85 kA at 200 V AC |
The standard tripping values are 15 mA, 30 mA, 100 mA, 200 mA and 500 mA.
The SG104H breaker has a breaking capacity of 85 kA at 200 V AC.
