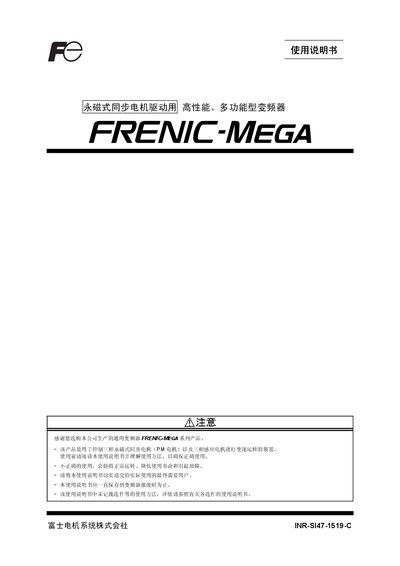

This manual provides safety, installation, wiring, operation and maintenance instructions for the Fuji Electric FRENIC‑MEGA VFD.
The FRENIC‑MEGA is a high‑performance, multifunctional variable frequency drive designed for three‑phase permanent‑magnet synchronous (PM) and induction motors. The manual explains safety precautions, installation requirements, wiring guidelines, and the steps needed to start and operate the drive safely.
Detailed sections cover the operation panel functions, various operating modes, function‑code settings, fault diagnosis, regular maintenance, and technical specifications such as input voltage, rated current and short‑circuit ratings. This manual is written in Chinese.
| Input voltage | Three‑phase 400 V |
|---|---|
| Short‑circuit rating | 10 000 A at 480 V |
| Rated current (example model 30 kW) | 30 A |
Use a FRN30GX1 fuse rated 30 A (IEC‑type) as specified in the fuse table.
