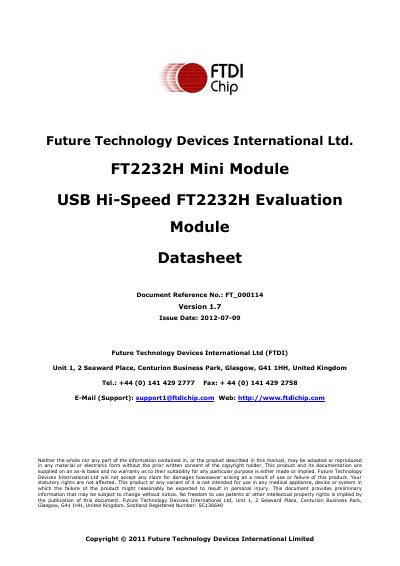

The FTDI FT2232H Mini Module USB Hi‑Speed Evaluation Module datasheet provides features, electrical and mechanical details, driver support, and specifications.
The FT2232H Mini Module is a USB‑to‑serial/FIFO development board that uses the FT2232H USB Hi‑Speed two‑port bridge chip. It is intended for rapid integration of USB into existing designs and supports UART, JTAG, SPI, I²C and other synchronous serial protocols via its configurable channels. The module connects to a host PC through a standard USB Mini‑B connector and appears as two virtual COM ports or can be accessed directly with FTDI’s D2XX driver.
The document details the electrical connections, pin assignments, mechanical dimensions, and default EEPROM configuration. It also lists supported operating systems for the VCP and D2XX drivers, and provides the module’s power requirements, temperature range, and maximum bus current. Contact information for FTDI worldwide offices is included.
| Asynchronous serial data rate | 300 baud to 12 Mbaud (TTL levels) |
|---|---|
| Synchronous serial (MPSSE) data rate | up to 30 Mbps on JTAG, SPI and I²C |
| Operating temperature range | -40 °C to +85 °C |
| Maximum bus power | 500 mA |
Yes, the FT2232H Mini Module is fully compliant with the USB 2.0 specification.
Yes, the module is USB‑powered and does not require an external power supply.
