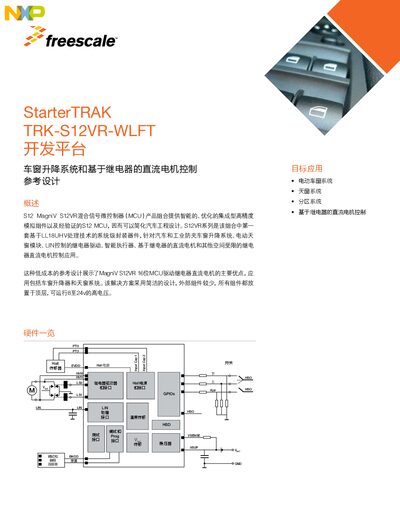

Freescale TRK-S12VR-WLFT Window Lift and Relay-Based DC Motor Control Hardware Reference Design

About this manual

The document describes a reference hardware platform for automotive window lift, sun‑roof and zone systems, using a Freescale S12VR 16‑bit MCU. It includes a relay driver, LIN interface, Hall sensor inputs, temperature and battery voltage monitoring, and supports operation from 8‑18 V.

The kit provides a DVD with CodeWarrior, anti‑pinch software, a design reference manual and a quick‑start guide. Relay status and diagnostics can be accessed via LIN and the HVIX wake‑up pin, and the board is sold as a StarterTRAK development platform. This manual is written in Chinese.

What's inside

• Target Applications
• Hardware Overview
• Features
• Software Support
• Development Platform
• Tools and Documentation

Specifications

Frequently asked questions

What is the operating voltage range of the TRK‑S12VR‑WLFT reference design?

It operates from 8 to 18 V.

What development tools are included with the reference design?

The kit includes a DVD with CodeWarrior, anti‑pinch software, a design reference manual, and a quick‑start guide.

How can the relay status be monitored?

Relay status can be sent via LIN and diagnosed through the HVIX wake‑up pin.

Which microcontroller is used in this reference design?

It uses the Freescale S12VR 16‑bit mixed‑signal microcontroller.
