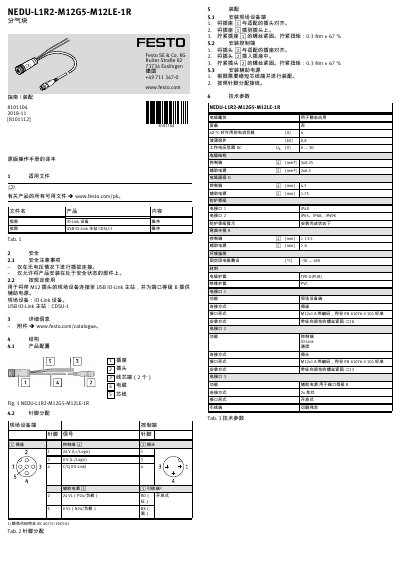

This manual provides installation instructions, safety notes, and technical specifications for the Festo NEDU-L1R2-M12G5-M12LE-1R IO-Link cable.
The document is a user guide for the Festo NEDU-L1R2-M12G5-M12LE-1R IO-Link cable, intended to connect field devices with M12 plugs to a USB IO-Link master station (CDSU-1) and provide auxiliary power. It covers safety precautions, product configuration details including pin assignments, and assembly instructions for the field device end, control end, and auxiliary power supply. This manual is written in Chinese.
| Current Load (Static) | 4 A |
|---|---|
| Surge Protection | 0.8 kV |
| Operating Voltage Range | DC 0 ... 30 V |
| Control End Wire Gauge | 3x0.25 mm² |
| Auxiliary Power Wire Gauge | 2x0.5 mm² |
| Control End Diameter | 4.5 mm |
| Auxiliary Power Diameter | 1.75 mm |
| Protection Rating (Field Device End) | IP40 |
| Protection Rating (Control End) | IP65, IP68, IP69K |
| Bending Radius (Field Device End) | 13.5 mm |
| Bending Radius (Auxiliary Power) | 6 mm |
| Operating Temperature Range | -30 ... +80 °C |
It connects field devices with M12 plugs to a USB IO-Link master station and provides auxiliary power for port class B.
The cable can handle a current load of up to 4 A for static applications.
You must tighten the screws with a torque of 0.3 Nm ± 67 %.
