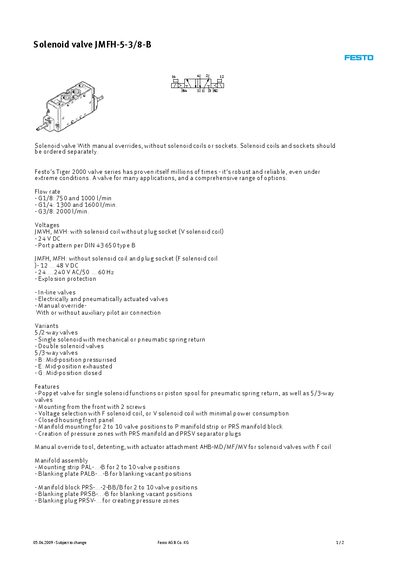

The JMFH-5-3/8-B solenoid valve is a Festo Tiger 2000 series solenoid valve that is suitable for many applications and has a comprehensive range of options, with a flow rate of 2000 l/min.
The JMFH-5-3/8-B is a solenoid valve offered by Festo, available with manual overrides and optional solenoid coils or sockets. It is designed for robust operation in extreme conditions and can be used in a wide range of applications.
The valve family includes 5/2‑way and 5/3‑way variants with different mid‑position states, mounting options from the front with two screws, and manifold assemblies for up to ten positions. Features such as explosion protection, in‑line design, and optional auxiliary pilot air connections are also provided.
| Flow rate G1/8 | 750 and 1000 l/min |
|---|---|
| Flow rate G1/4 | 1300 and 1600 l/min |
| Flow rate G3/8 | 2000 l/min |
| Voltage (F solenoid coil) | 12‑48 VDC |
| Voltage (AC) | 24‑240 VAC, 50‑60 Hz |
| Port pattern | DIN 43 650 type B |
| Explosion protection | Yes |
| Manual override | Provided |
The valve offers 750 and 1000 l/min for G1/8, 1300 and 1600 l/min for G1/4, and 2000 l/min for G3/8.
Yes, the valve provides a manual override tool.
