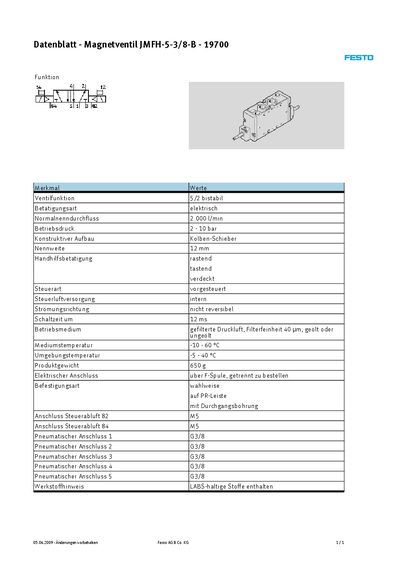

JMFH-5-3/8-B solenoid valve is a 5/2 bistable solenoid valve produced by Festo. The normal rated flow of the solenoid valve is 2000L/min, the working pressure is 2-10bar, and the product weight is 650g.
The JMFH-5-3/8-B is a 5/2 bistable electric magnet valve with a nominal size of 12 mm. It operates with filtered compressed air (filter fineness 40 µm) and can be used with lubricated or non‑lubricated air.
Key features include an electric operating mode, internal control‑air supply, non‑reversible flow direction, and a switching time of about 12 ms. The valve can be mounted on a PR rail with a through‑hole and offers multiple pneumatic and control‑air connections. This manual is written in German.
| Valve function | 5/2 bistable |
|---|---|
| Operating mode | electric |
| Nominal flow | 2,000 L/min |
| Operating pressure | 2‑10 bar |
| Construction | piston‑slide |
| Nominal size | 12 mm |
| Control type | pre‑controlled |
| Control air supply | internal |
| Flow direction | non‑reversible |
| Switching time | ~12 ms |
| Operating medium | filtered compressed air, 40 µm filter, lubricated or non‑lubricated |
| Medium temperature range | -10 °C to 60 °C |
| Ambient temperature range | -5 °C to 40 °C |
| Product weight | 6508 g |
| Electrical connection | via F‑coil, ordered separately |
| Mounting options | on PR rail with through‑hole |
| Control air connections | 82 M5, 84 M5 |
| Pneumatic connections | G3/8 (1‑5) |
| Material note | contains LABS‑containing substances |
The nominal flow rate is 2,000 L/min.
The switching time is approximately 12 ms.
It can operate between 2 and 10 bar.
