The JMFH-5-3/8-B solenoid valve is a 5/2 two-position single spring straight through solenoid valve. The valve is controlled by the actuation of the solenoid coil, which allows the air to flow through or be blocked. The standard nominal flow rate is 2.000 l/min and the operating pressure is 2-10 bar.
The JMFH-5-3/8-B is a 5/2 bistable magnet valve with electric actuation, designed for use with filtered compressed air. It features a piston‑slide construction, a 12 mm nominal size, and a normal flow rate of 2 000 L/min.

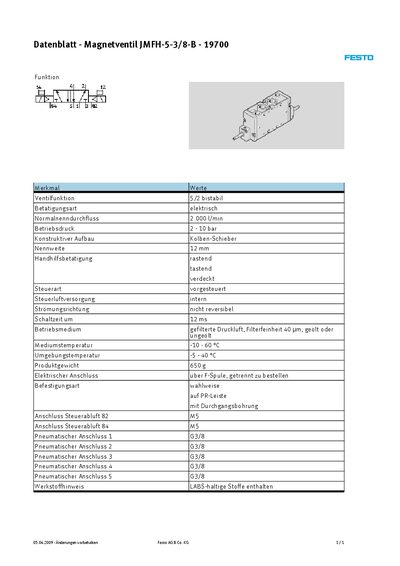

Key specifications include an operating pressure range of 2‑10 bar, a switching time of about 12 ms, and a temperature range of –10 °C to 60 °C for the medium and –5 °C to 40 °C for the environment. The valve can be mounted on a PR‑rail or with a through‑hole, and offers multiple pneumatic and control air connections. This manual is written in German.
| Ventilfunktion | 5/2 bistabil |
|---|---|
| Betätigungsart | elektrisch |
| Normalnenndurchfluss | 2.000 L/min |
| Betriebsdruck | 2-10 bar |
| Konstruktiver Aufbau | Kolben‑Schieber |
| Nennweite | 12 mm |
| Handhilfsbetätigung | rastend, tastend, verdeckt |
| Steuerart | vorgesteuert |
| Steuerluftversorgung | intern |
| Strömungsrichtung | nicht reversibel |
| Schaltzeit | ≈ 12 ms |
| Betriebsmedium | gefilterte Druckluft, Filterfeinheit 40 µm |
| Mediumstemperatur | -10 °C … 60 °C |
| Umgebungstemperatur | -5 °C … 40 °C |
| Produktgewicht | 6508 |
| Elektrischer Anschluss | Über F‑Spule, separat bestellbar |
| Befestigungsart | auf PR‑Leiste oder mit Durchgangsbohrung |
| Pneumatischer Anschluss 1 | G3/8 |
| Pneumatischer Anschluss 2 | G3/8 |
| Pneumatischer Anschluss 3 | G3/8 |
| Pneumatischer Anschluss 4 | G3/8 |
| Pneumatischer Anschluss 5 | G3/8 |
The valve has a normal flow rate of 2 000 L/min.
It operates between 2 and 10 bar.
The switching time is approximately 12 ms.
The valve can be mounted on a PR‑rail or with a through‑hole.
