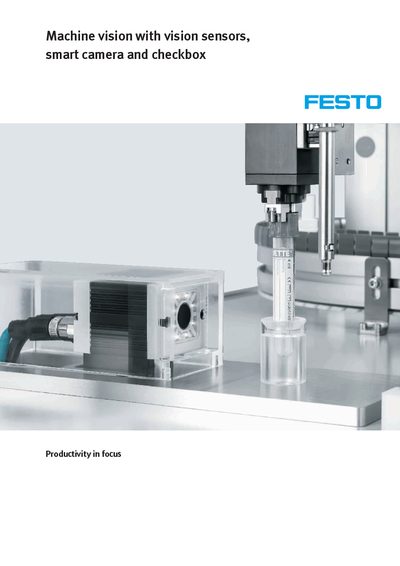

Product information for the Festo Vision Sensor SBSx, covering object detection, code reading, and color sensing applications with technical data.
The Festo Vision Sensor SBSx is designed for machine vision applications including part identification, quality inspection, and position sensing. It is available in various versions such as the object sensor SBSx-Q, code reader SBSx-B, colour sensor SBSx-F, and universal sensor SBSx-U. The system is noted for being cost-effective and quick to commission, even for users without expert knowledge.
The sensor features an integrated optical system and lighting in the SBSI version, or allows for flexible external lighting connections in the SBSC version. Commissioning is simplified through a three-step process involving connection, job configuration in the Configuration Studio, and result display. The device supports various detection functions including pattern matching, contour detection, and barcode reading.
| Sensor resolution | 1280 x 1024 (SXGA) / 736 x 480 (WideVGA) |
|---|---|
| Frame rate (full image) | 40 fps (50 fps for colour) |
| Dimensions | 45 x 45 x 76.7 mm |
| Product weight | 160 g |
| Housing material | Wrought aluminium alloy |
| Cover material | Reinforced ABS |
| RoHS compliance | Compliant |
The sensor functions as an object sensor, code reader, colour sensor, or a universal variant combining these functions.
The vision sensor is ready for use in just three steps: connect, job configuration, and display results.
