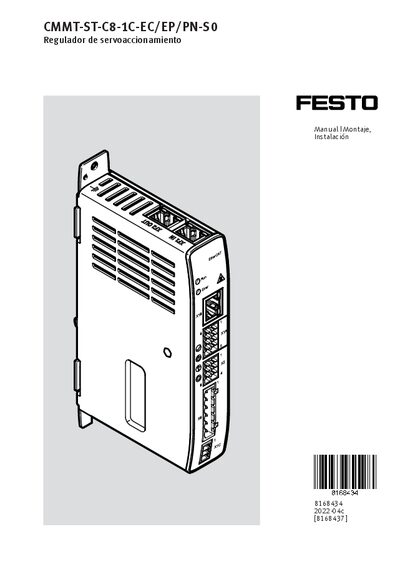

Introduce the features and characteristics of the CMMT-ST-C8-1C-EC/EP/PN-S0 servo drive, including installation, use and maintenance
This manual is intended for technicians who install, commission, and maintain the CMMT‑ST‑C8‑1C‑EC/EP/PN‑S0 servo drive. It covers safety instructions, product variants, and required qualifications for personnel.
The document includes sections on system structure, mounting distances, wiring diagrams, interface descriptions (EtherCAT, EtherNet/IP, PROFINET), motor connection, power supply, fault diagnosis, and detailed technical specifications such as input voltage, protection class, and environmental limits. This manual is written in Spanish.
| Input voltage | 24.48 V DC |
|---|---|
| Input current | 8 A |
| Protection class | Class II (SELV/PELV) |
| IP rating | IP20 |
| SCCR (short‑circuit current rating) | 5000 A |
| Maximum ambient temperature | 50 °C |
The device can be equipped with EtherCAT, EtherNet/IP, or PROFINET fieldbus protocols.
Installation must be performed by qualified technical personnel, the unit must be mounted in a cabinet with at least IP54 protection, and no unauthorized modifications are allowed.
The drive requires a 24.48 V DC input with a nominal current of 8 A.
The drive can operate in environments up to 50 °C ambient temperature.
