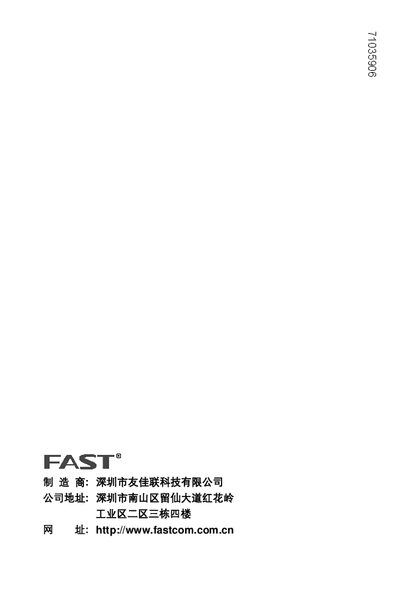

The Fastcom FSG108/FSG116/FSG124 user manual provides product overview, installation steps, LED indicator meanings, and technical specifications for these…
This manual introduces the Fastcom FSG1XX series of 8/16/24‑port gigabit Ethernet switches, covering their basic features, supported IEEE standards, and front‑panel LED indicators. It also details the unpacking process, hardware installation options (desktop or 19‑inch rack mounting), and initial power‑up behavior.
Additional sections describe the technical specifications such as power requirements, power consumption, dimensions, operating temperature, and environmental limits, as well as advanced functions like auto‑MDI/MDIX, flow control, and IEEE802.1X port security. This manual is written in Chinese.
| Number of ports | 8/16/24 10/100/1000M RJ‑45 ports |
|---|---|
| Power input (FSG108) | 220 V ~ 50 Hz, 0.1 A |
| Power input (FSG116/FSG124) | 100‑240 V ~ 50/60 Hz, 0.6 A |
| Maximum power consumption | 10 W (FSG108), 17 W (FSG116), 26 W (FSG124) |
| Dimensions | 250 mm × 158 mm × 44 mm (FSG108); 440 mm × 180 mm × 44 mm (FSG116/FSG124) |
| Operating temperature | 0 °C ~ 40 °C |
| Storage temperature | -40 °C ~ 70 °C |
| Humidity range | 5 % ~ 95 % non‑condensing |
| MAC address table size | 8 K entries |
| SSRAM cache | 1.5 Mbit (FSG108) / 4 Mbit (FSG116/FSG124) |
| Supported Ethernet standards | IEEE802.3 10BASE‑T, 802.3u 100BASE‑TX, 802.3ab 1000BASE‑T |
The switches are offered with 8, 16, or 24 10/100/1000 Mbps RJ‑45 ports.
The FSG108 requires a 220 V ~ 50 Hz AC source drawing about 0.1 A.
