This document is a hookup diagram and user guide for the Fast Track Ultra 8R audio interface by Avid Technology. The audio interface features multiple input and output options, including mic/line inputs, instrument/line inputs, mic inputs, instrument inputs, phantom power, MIDI output, etc. It is designed for connecting and using with computers, keyboards, CD players, microphones, mixing desks, amplifiers, powered monitors, etc.

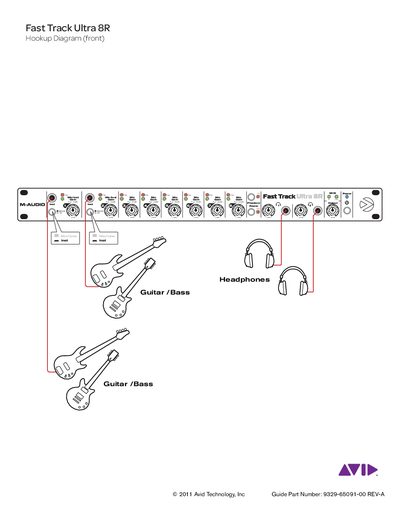

The document serves as a user guide for the Avid Fast Track Ultra 8R, published by Avid Technology in 2011. It contains visual hookup diagrams for both the front and back of the device to assist with setup.
The text details various connection points including MIDI keyboards, computers via USB 2.0, CD players, mixing desks, amplifiers, powered monitors, and microphones. It specifies supported connector types such as XLR, 1/4" TRS, and TS for different inputs like preamps and keyboards.
The device requires a power supply rated for 3.5A to 4A DC.
The microphone input accepts XLR or 1/4" TRS or TS connectors.
