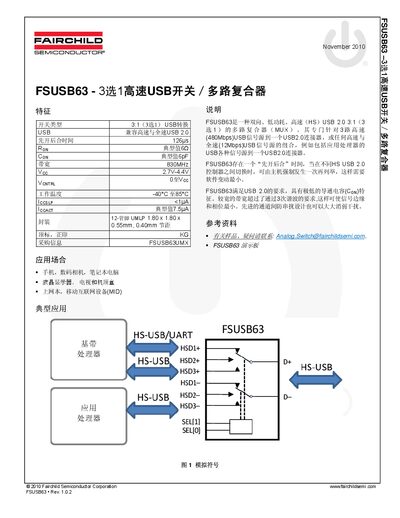

The FSUSB63 is a bidirectional low‑power USB 2.0 3‑to‑1 multiplexer with 126 µs turn‑on‑then‑off time, 6 Ω RON, 6 pF CON and 830 MHz bandwidth.
The FSUSB63 is a dual‑direction, low‑power, high‑speed USB 2.0 3‑to‑1 multiplexer designed for routing three high‑speed (480 Mbps) or mixed high‑/full‑speed (12 Mbps) USB signals to a single USB connector. It features a “turn‑on‑then‑off” timing characteristic that simplifies host‑side switching.
Key specifications include a typical on‑resistance of 6 Ω, on‑capacitance of 6 pF, bandwidth up to 830 MHz, and operation from 2.7 V to 4.4 V. The device is supplied in a 12‑pin ultra‑thin molded lead‑frame package (UMLP) measuring 1.80 × 1.80 × 0.55 mm, suitable for mobile phones, digital cameras, laptops, displays, TVs and set‑top boxes. This manual is written in Chinese.
| Switch type | 3:1 (3‑to‑1) |
|---|---|
| Turn‑on‑then‑off time | 126 µs |
| On‑resistance (RON) | 6 Ω (typical) |
| On‑capacitance (CON) | 6 pF (typical) |
| Bandwidth | 830 MHz |
| Supply voltage (VCC) | 2.7 V – 4.4 V |
| Control voltage (VCNTRL) | 0 to VCC |
| Operating temperature | -40 °C to 85 °C |
| ICCSLP (sleep current) | <1 µA |
| ICCACT (active current) | 7.5 µA (typical) |
| Package | 12‑pin UMLP 1.80 × 1.80 × 0.55 mm |
The device has a turn‑on‑then‑off time of 126 µs.
Typical on‑resistance is 6 Ω.
It supports a bandwidth of up to 830 MHz.
It operates from –40 °C to +85 °C.
