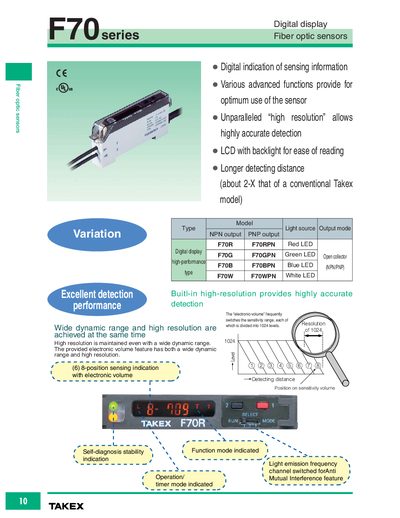

Technical specifications, functions and environmental data for the F70 series fiber optic sensors.
The F70 series fiber optic sensors provide high‑resolution detection with a 1024‑level electronic‑volume sensitivity range and multiple output options (NPN/PNP open‑collector). Features include self‑diagnosis, anti‑mutual‑interference, auto‑teaching modes, and adjustable timer functions for flexible integration.
The sensors operate from a 12‑24 V DC supply, support sink/source currents up to 100 mA, and are rated for ambient temperatures from –25 °C to +55 °C (storage up to +70 °C). They include LED light sources in red, green, blue and white, and meet IP40 protection.
| Current consumption (max) | 39 mA |
|---|---|
| Sink current (NPN output) | 50 mA (30 VDC max) |
| Source current (PNP output) | 50 mA (30 VDC max) |
| Delay time range | 10 ms – 120 ms (selectable) |
| Light emission frequency channel 1 | 600 µs max |
| Resolution (electronic volume) | 1024 levels |
| Storage temperature range | –40 °C to +70 °C |
The electronic‑volume provides 1024 distinct sensitivity levels.
Yes, delay time can be set between 10 ms and 120 ms in 10 ms steps.
